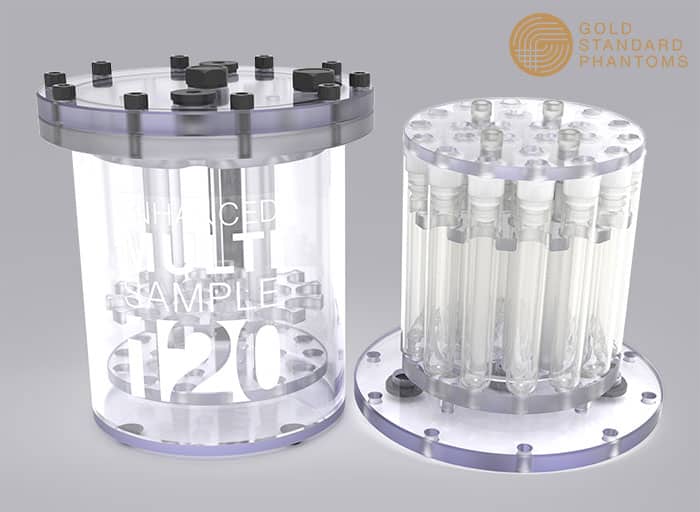

The MultiSample120E (enhanced) is a 120mm diameter cylindrical phantom, capable of holding up to 24 industry standard 100 x 16mm, 10ml polypropylene vials. The phantom can be supplied pre-filled with configurations for diffusion or relaxometry, or empty for filling by the user, making it ideal either for acquisitions/technique development, or quality assurance of advanced imaging methods.
Get Quote
Share our product


  • Quantitative T1/T2 relaxometry
  • Metabolic imaging
  • Spectroscopy
  • Multi-nuclear imaging
  • Quantitative diffusion imaging
  • Proton density fat fraction


Diameter 120mm (inner), 130mm (outer), 160mm (widest)
Length 165mm
Overall Dimensions 160mm x 160mm x 165mm (LxWxH)
Ports 2x 1/4” BSP (filling ports)
2x M12x1.5 (probe ports)
Materials Body and Lid: Polycarbonate

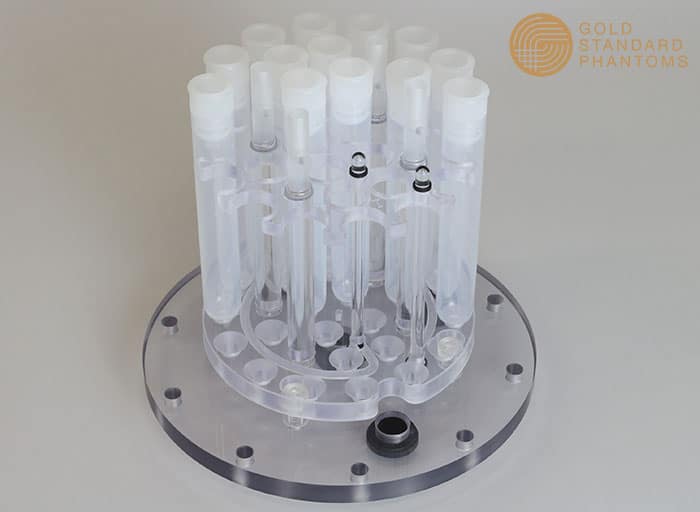

Sample holder: Polycarbonate and Acrylic
Fillable Tube Fiducials: Glass and EVA Plastic
Fasteners: GF Nylon and Polycarbonate
Plug: GF Nylon
Seals: Nitrile

Sample Containers 24x 10ml, 100×16 mm polypropylene vials
Phantom Contents Can be:
Supplied empty.
Filled with standard diffusion and relaxometry configurations.
Filled to customer specification on request.
Packaging Foam padded box for storage and transport
Optional Extras Fittings for connecting to a circulating water system (system must be user supplied)
Foam insulating jacket

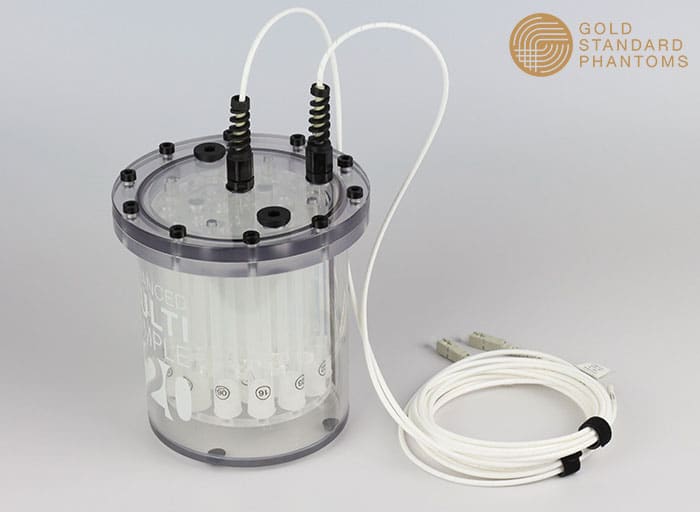

Insertable fibre optic thermometer probes
Torque screwdriver (highly recommended for self-filling applications to prevent damage to the phantom from overtightening screws)
